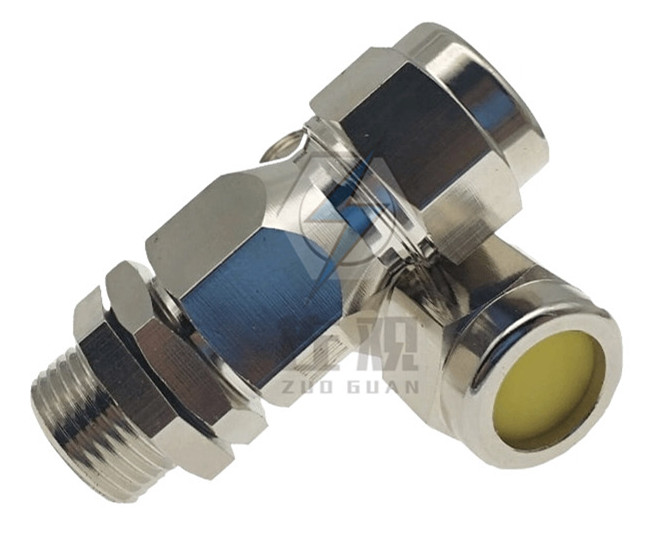

| 产品名称：防爆填料函 |
关于防爆填料函使用方法及选型方法
一：首先要确定您的电缆线类型，是不是铠装电缆，如果是铠装电缆线就必须要用铠装电缆填料函。关于铠装电缆填料函的使用方法及选型规则请参照上海佐观官网或联系我们客服。如果是普通的电缆线，就不需要用到铠装格兰头了。（注：这是铠装与非铠装格兰头选型区别）
二：使用环境要求，一般环境恶劣的地方如船舶、化工厂、石油工程、天然气等，建议最好使用防腐防爆更好的不锈钢材质。有些对电磁波有干扰的地方有特殊要求的，建议使用配套的防电磁屏蔽式电缆格兰头。
三：根据你所开孔的类型选择不同规格的金属填料函，现在最实用的四种螺牙规格是公制牙，德制牙，英制牙，美制牙。选择好螺牙规格后让后确定电缆线的外径是多大，对应我们接头的收缩范围就可以了。如果没有开孔，可以根据电缆线外径选择不同类型的螺牙的格兰头，根据格兰头大小和类型。
四：特殊要求，如需要变径格兰头，螺纹加长型格兰头（设备板厚较厚）可联系上海佐观电气有限公司客服人员确定
以上是不锈钢电缆格兰头的基本选型方法，如有其他方便的疑问，具体可以咨询客服进一步了解哦！
五：名称：防爆填料函又名电缆格兰头，电缆压盖，电缆填料函，电缆固定头,电缆锁头
防爆填料函用法在知道选型后就更简单了。
第一步：将不锈钢电缆固定头螺纹端拧进设备，如果没有螺纹，是通孔的，需要在电器设备里面拧上锁紧螺母，螺母都是附送的（美制螺纹NPT是锥度螺纹是不配螺母的，购买时请注意），所以不用担心。
第二步，将电缆线通过不锈钢电缆格兰头穿出固定即可。
第三步:拧紧迫紧螺帽，将电缆线锁紧密封，然后用力拉下电缆线，看会不会动，一般都不会再有什么问题了，如果以后再要移动电缆，只需要放松迫紧螺帽即可
防爆填料函选型参数表
型号
Item No |
螺纹长度 |
本体橡胶 |
顶部橡胶 |
屏蔽层 |
配套螺母 |
接合长度 |
板手 |
包装 |
|
Thread |
Outer |
Outer |
Tape |
上限板厚 |
Joint |
Spanne |
Std.Pkg |
|
Length |
sealing |
sealing |
braid |
+Nut Max |
Length |
SW |
Pcs |
|
L1 |
|
|
|
platethick |
H |
|
|
|
公制螺纹M |
|
PEXD2-EX-M16×1.5-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
50PCS |
|
PEXD2-EX-M16×1.5-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-M20×1.5-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-M20×1.5-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-M20×1.5-21 |
16 |
7-14 |
15.5-21 |
≤0.50 |
≤10.5 |
58 |
30 |
25PCS |
|
PEXD2-EX-M25×1.5-28 |
16 |
13-20 |
20-28 |
≤0.50 |
≤10.5 |
58 |
36 |
|
PEXD2-EX-M32×1.5-34 |
16 |
19-26 |
26-34 |
≤0.55 |
≤10.5 |
65 |
44 |
|
PEXD2-EX-M40×1.5-41 |
16 |
25-32 |
33-41 |
≤0.80 |
≤10.5 |
72 |
54 |
1PCS |
|
PEXD2-EX-M50×1.5-46 |
16 |
32-38 |
39-46 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-M50×1.5-53 |
16 |
36-44 |
45-53 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-M63×1.5-60 |
19 |
42-50 |
52-60 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-M63×1.5-66 |
19 |
50-56 |
58-66 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-M75×1.5-66 |
19 |
54-62 |
64-72 |
≤1.00 |
≤13.5 |
82 |
96 |
|
PEXD2-EX-M75×1.5-78 |
19 |
60-68 |
71-78 |
≤1.00 |
≤13.5 |
82 |
96 |
|
PEXD2-EX-M80×2.0-84 |
19 |
62-72 |
77-84 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-M80×2.0-90 |
19 |
70-80 |
80-90 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-M85×2.0-90 |
19 |
70-80 |
80-90 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-M90×2.0-96 |
19 |
74-84 |
88-96 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-M90×2.0-100 |
19 |
80-90 |
90-100 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-M100 2.0-100 |
19 |
80-90 |
90-100 |
≤1.00 |
≤13.5 |
110 |
110 |
|
德制螺纹 PG |
|
PEXD2-EX-PG9-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
100PCS |
|
PEXD2-EX-PG9-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-PG13.5-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-PG13.5-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-PG13.5-21 |
16 |
7-14 |
15.5-21 |
≤0.50 |
≤10.5 |
58 |
30 |
25PCS |
|
PEXD2-EX-PG21-28 |
16 |
13-20 |
20-28 |
≤0.50 |
≤10.5 |
58 |
36 |
|
PEXD2-EX-PG29-34 |
16 |
19-26 |
26-34 |
≤0.55 |
≤10.5 |
65 |
44 |
|
PEXD2-EX-PG36-41 |
16 |
25-32 |
33-41 |
≤0.80 |
≤10.5 |
72 |
54 |
1PCS |
|
PEXD2-EX-PG42-46 |
16 |
32-38 |
39-46 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-PG42-53 |
16 |
36-44 |
45-53 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-PG48-60 |
19 |
42-50 |
52-60 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-PG48-66 |
19 |
50-56 |
58-66 |
≤0.80 |
≤13.5 |
76 |
81 |
|
美制螺纹NPT |
|
PEXD2-EX-NPT1/2-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
50PCS |
|
PEXD2-EX-NPT1/2-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-NPT1/2-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-NPT1/2-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-NPT1/2-21 |
16 |
7-14 |
15.5-21 |
≤0.50 |
≤10.5 |
58 |
30 |
25PCS |
|
PEXD2-EX-NPT3/4-28 |
16 |
13-20 |
20-28 |
≤0.50 |
≤10.5 |
58 |
36 |
|
PEXD2-EX-NPT1-34 |
16 |
19-26 |
26-34 |
≤0.55 |
≤10.5 |
65 |
44 |
|
PEXD2-EX-NPT1-1/4-41 |
16 |
25-32 |
33-41 |
≤0.80 |
≤10.5 |
72 |
54 |
1PCS |
|
PEXD2-EX-NPT1-1/2-46 |
16 |
32-38 |
39-46 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-NPT1-1/2-53 |
16 |
36-44 |
45-53 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-NPT2-60 |
19 |
42-50 |
52-60 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-NPT2-66 |
19 |
50-56 |
58-66 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-NPT2-1/2-66 |
19 |
54-62 |
64-72 |
≤1.00 |
≤13.5 |
82 |
96 |
|
PEXD2-EX-NPT2-1/2-78 |
19 |
60-68 |
71-78 |
≤1.00 |
≤13.5 |
82 |
96 |
|
PEXD2-EX-NPT3-96 |
19 |
74-84 |
88-96 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-NPT3-100 |
19 |
80-90 |
90-100 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-NPT3-1/2-100 |
19 |
80-90 |
90-100 |
≤1.00 |
≤13.5 |
110 |
110 |
|
英制螺纹G |
|
PEXD2-EX-G1/2-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
50PCS |
|
PEXD2-EX-G1/2-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-G1/2-13 |
16 |
4-8.5 |
8.5-13.5 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-G1/2-16 |
16 |
8-11.5 |
11.5-16 |
≤0.35 |
≤10.5 |
58 |
24 |
|
PEXD2-EX-G1/2-21 |
16 |
7-14 |
15.5-21 |
≤0.50 |
≤10.5 |
58 |
30 |
25PCS |
|
PEXD2-EX-G3/4-28 |
16 |
13-20 |
20-28 |
≤0.50 |
≤10.5 |
58 |
36 |
|
PEXD2-EX-G1-34 |
16 |
19-26 |
26-34 |
≤0.55 |
≤10.5 |
65 |
44 |
|
PEXD2-EX-G1-1/4-41 |
16 |
25-32 |
33-41 |
≤0.80 |
≤10.5 |
72 |
54 |
1PCS |
|
PEXD2-EX-G1-1/2-46 |
16 |
32-38 |
39-46 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-G1-1/2-53 |
16 |
36-44 |
45-53 |
≤0.80 |
≤10.5 |
73 |
64 |
|
PEXD2-EX-G2-60 |
19 |
42-50 |
52-60 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-G2-66 |
19 |
50-56 |
58-66 |
≤0.80 |
≤13.5 |
76 |
81 |
|
PEXD2-EX-G2-1/2-66 |
19 |
54-62 |
64-72 |
≤1.00 |
≤13.5 |
82 |
96 |
|
PEXD2-EX-G2-1/2-78 |
19 |
60-68 |
71-78 |
≤1.00 |
≤13.5 |
82 |
96 |
|
PEXD2-EX-G3-96 |
19 |
74-84 |
88-96 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-G3-100 |
19 |
80-90 |
90-100 |
≤1.00 |
≤13.5 |
110 |
110 |
|
PEXD2-EX-G3-1/2-100 |
19 |
80-90 |
90-100 |
≤1.00 |
≤13.5 |
110 |
110 |
|
|
|
|
|
